Capacity: 1 person/time
Slide type: body slide
Tower height: 18m
Model Number: HS114
Floor space: 1200㎡
Capacity per hour: 120 riders/h
Magicloop Water Rides For Sale Water Rides Manufacturer Water Rides Supplier
Haisan is a water park equipment manufacturer located in Guangdong province in China with its own brand Haisen. At Haisan, there are a big range of slides, rides and pools equipment for water parks, theme parks and amusement parks. The main material being used for those water park equipment are fiberglass with techniques of hand spray up and powder coating, which meets SGS stands under ISO9001:2008 management.

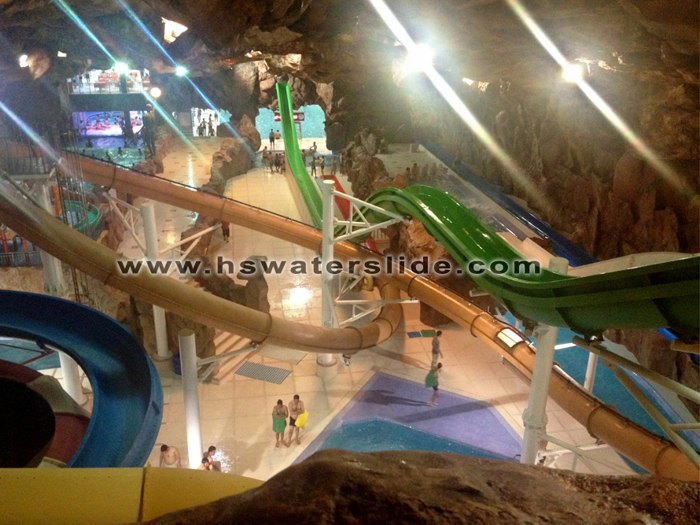

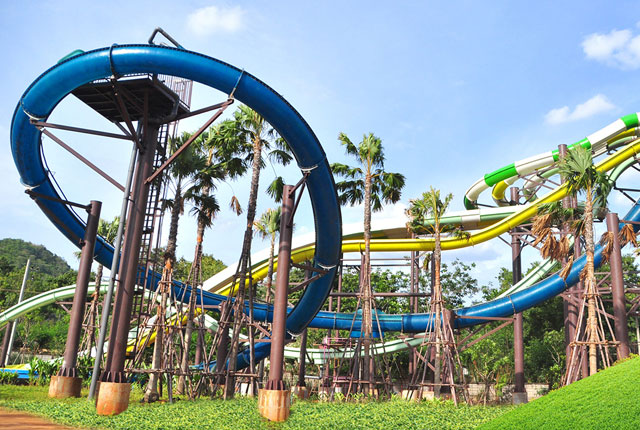

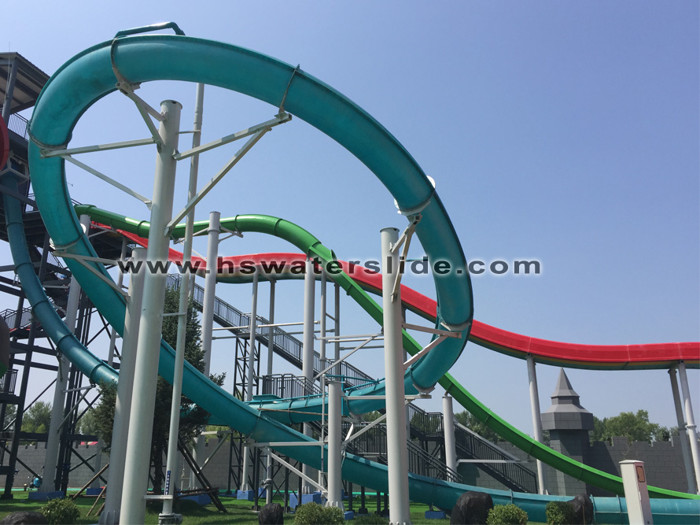

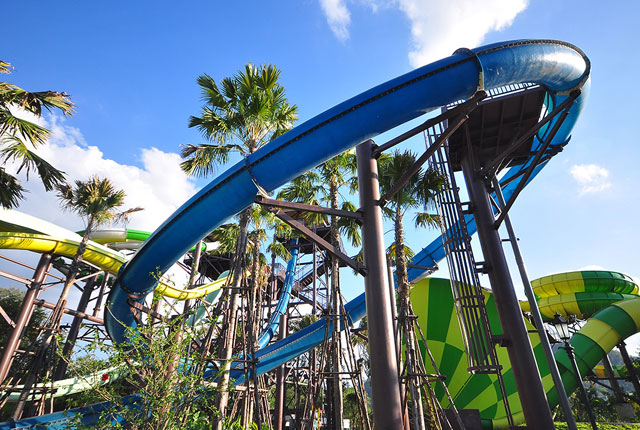

Magicloop water rides which is first designed and produced by Haisen is a new-style water slide in the word. The material of the new slide mainly used by fiberglass. With the help of gravity and lubrication from water, visitor is released from a cabinet and slip vertically from 17m height platform to the bottom where speed is as fast as 50km/h. Magicloop slide named Aqualoop, is one new-style water slide in the world. In China, we first designed and produced the slides and get the patent. It's one kind of full closed slides made from transparent fiberglass material. With the help of gravity and lubrication from water, Visitor is released from a cabinet and slip vertically from 18m height platform to the bottom . Then visitor will be rushed through inclined loop and reached the apex of the loop due to inertia when his heart is still beating due to the weightless.
Aqua Park Equipment - Magicloop Water Rides Introduction
Like most water amusement rides, riders will slide down the water lubricated Magicloop slide along the way with its own gravity by the principle of potential energy and kinetic energy transformation. The decline angle of slide initial period is 70 °. It’s shaped as the tube round section with the width of 0.8m. It’s nearly free fall from the entrance part to slide part. Riders will immediately go down from 19m height to 3m height after a big radius section and then crash into the straight section. With the speed declines gradually, it still keeps surplus kinetic energy until reaching the top. Riders will slide into the buffer period again with the rest of the kinetic energy. There is a small angle between buffer section and ground level. With the increase of water depth in the buffer section, riders in the buffer section won't be hit or thrown up and will stop in the flume in the end. The length of buffer section is enough to enable visitors to stop in the buffer completely.
1. We will provide best quality fiberglass water slides and enthusiastic service for you.
2. Our factory is a direct manufacturer in China, thus we ensure to offer you with the most competitive price.
3. Provide professional suggestions for equipment selection.
4. Provide design services for your project according to the local land information and requests.
5. Guide your staff to operate the equipment and to manage the water park.
6. Arrange engineers to your site to supervise your workers to install the equipment.
7. One Year Warranty of all products.
Packaging & Delivery
Packaging Details: Wrapped with bubble film,in wooden box, for shipping
Delivery Detail: Within 20-40days in usual.But according to the quantity.
